Jumper Settings

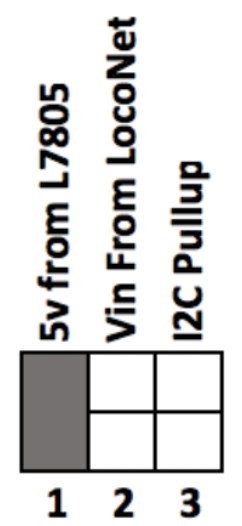

The Jumper pin headers J1 and J2 are used to set different usage scenarios.

The L7805 5v out is connected to the Arduino Nano 5v line.
Use this to bypass the Arduino’s onboard 5v regulator if more power is needed than the onboard regulator can supply.

Last modified March 5, 2021
